Engine Main
19 diagrams
001_01
ENGINE ASSEMBLY
002_01

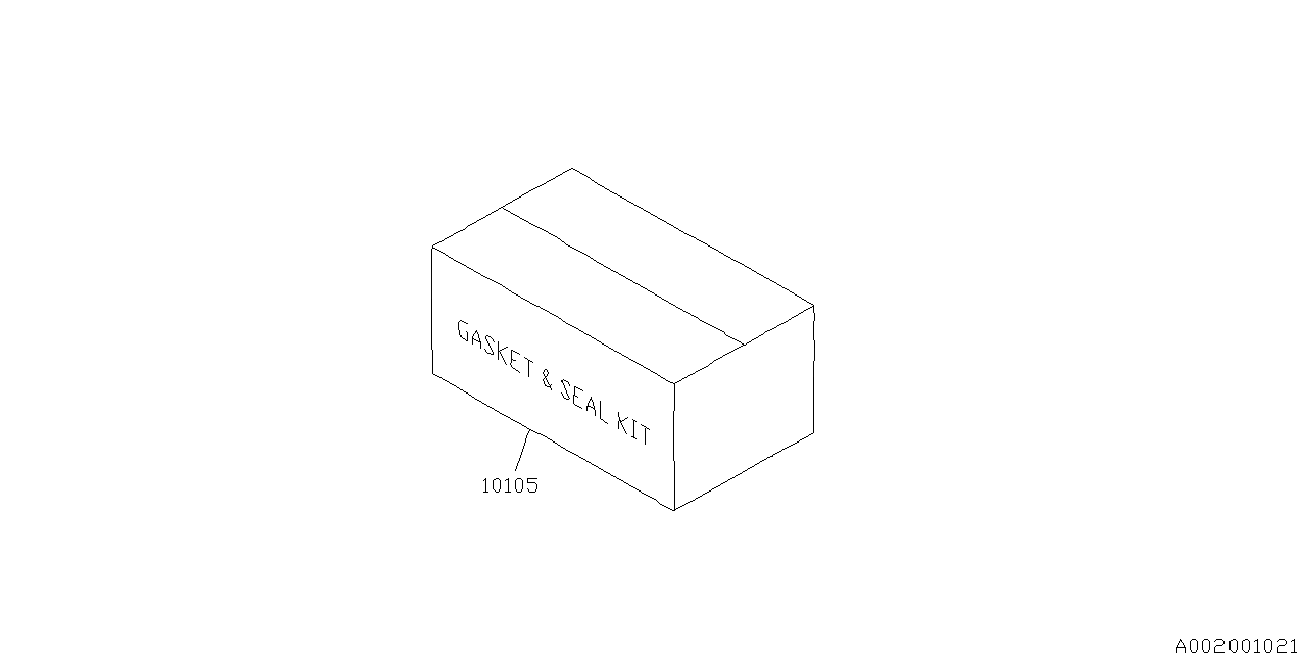

ENGINE GASKET & SEAL KIT
003_01
SHORT BLOCK ENGINE

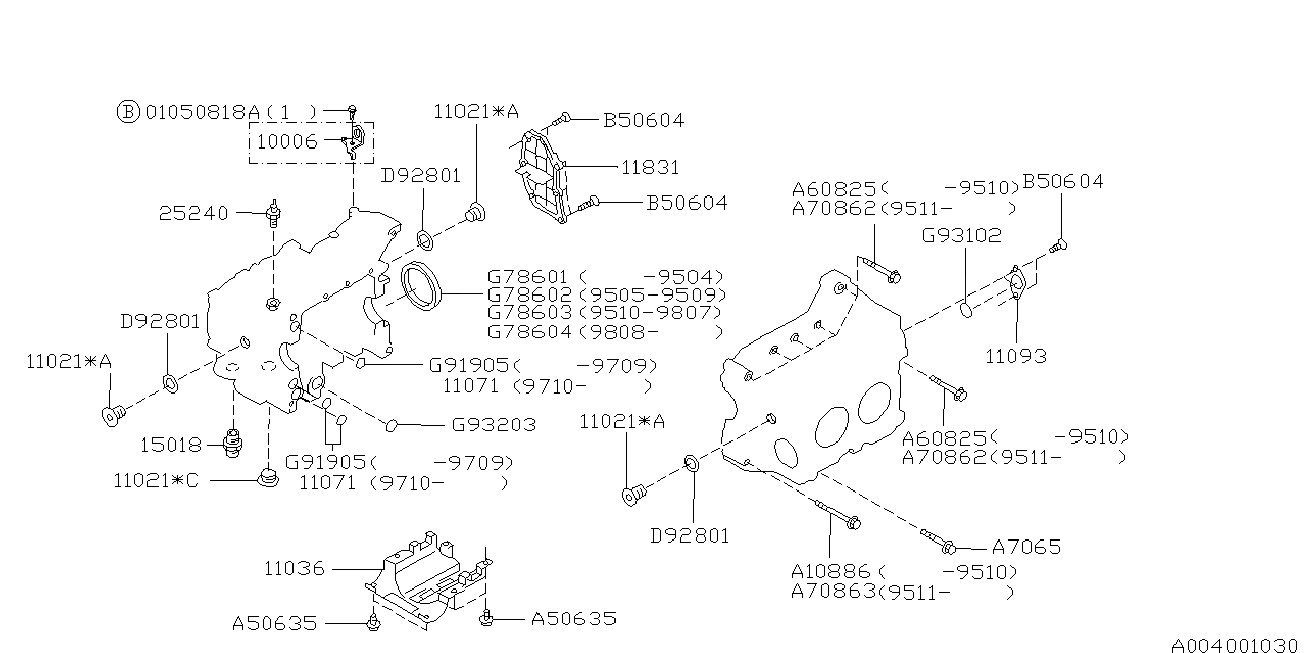

004_01
CYLINDER BLOCK

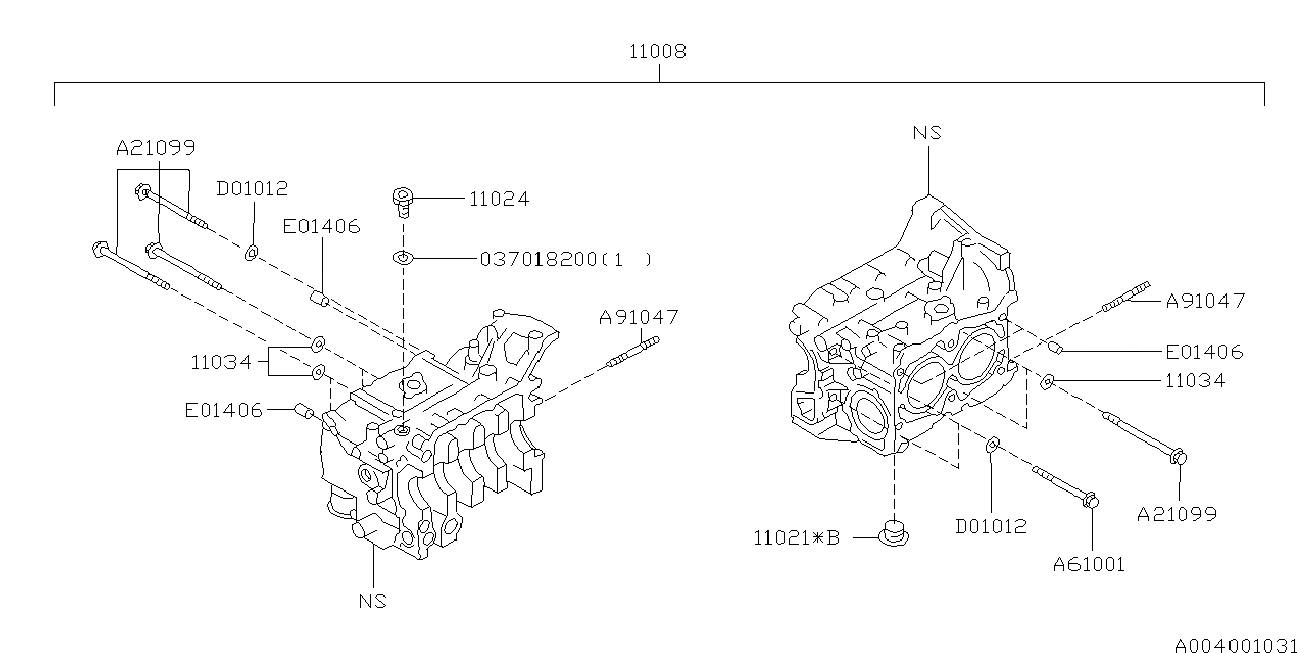

004_02
CYLINDER BLOCK

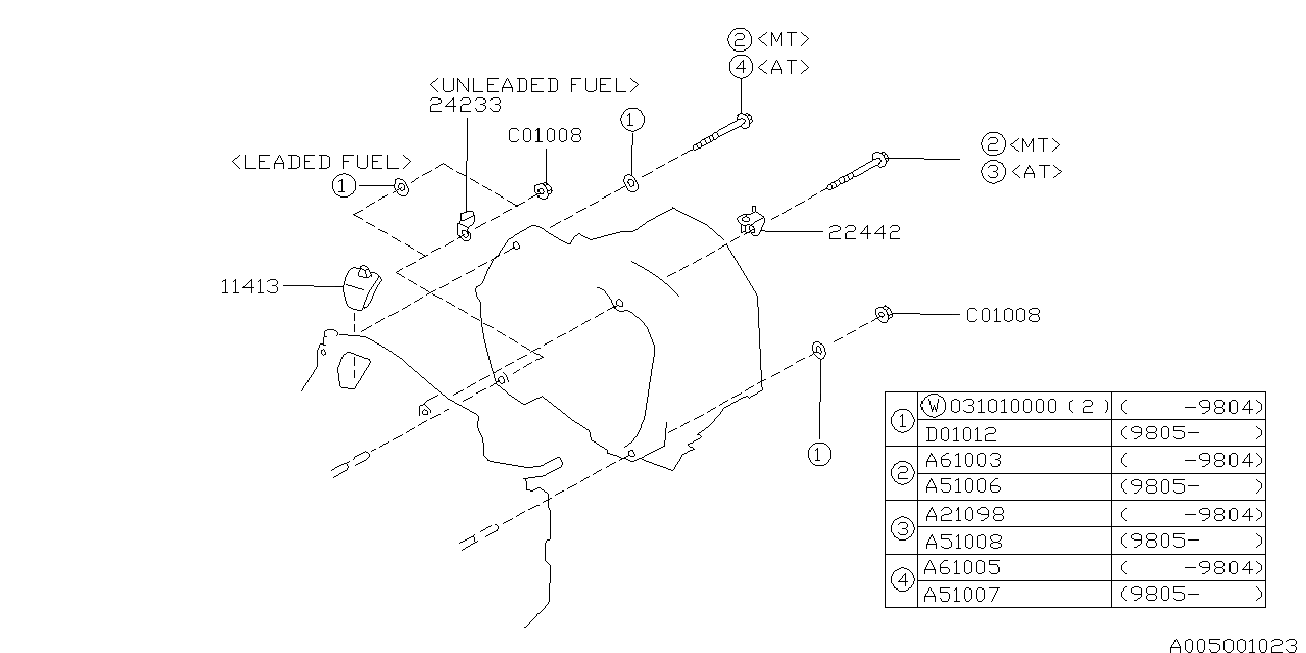

005_01
TIMING HOLE PLUG & TRANSMISSION BOLT
006_01

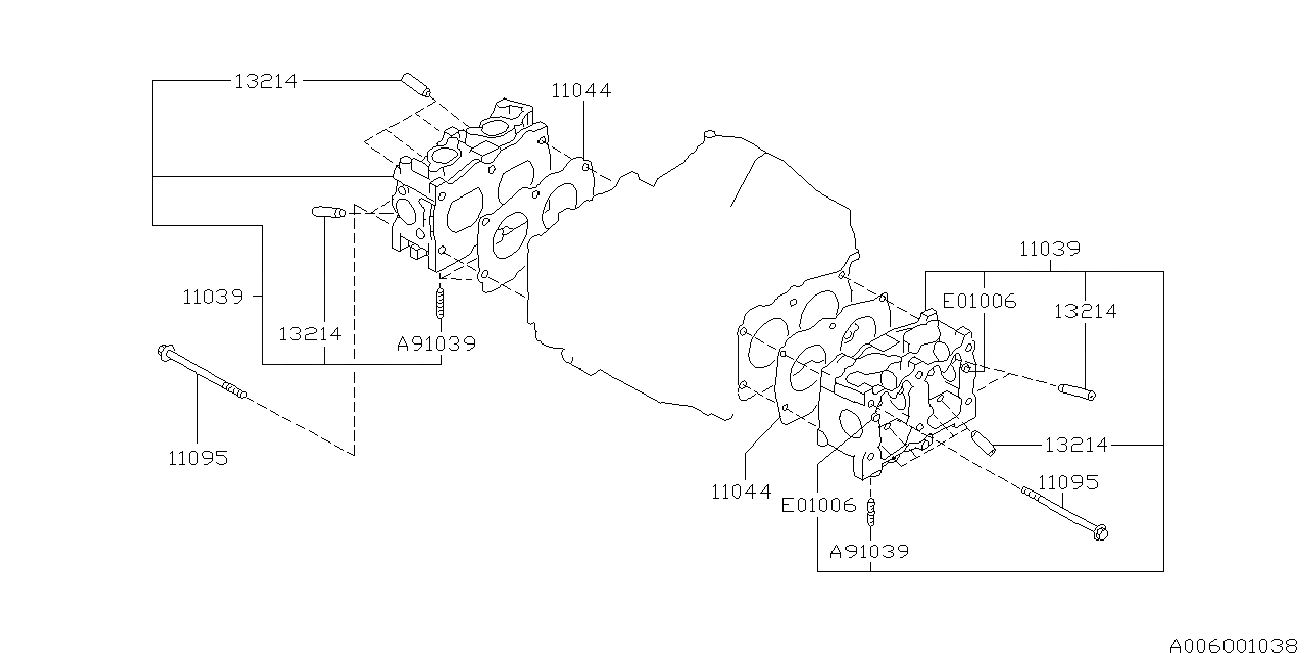

CYLINDER HEAD
010_01

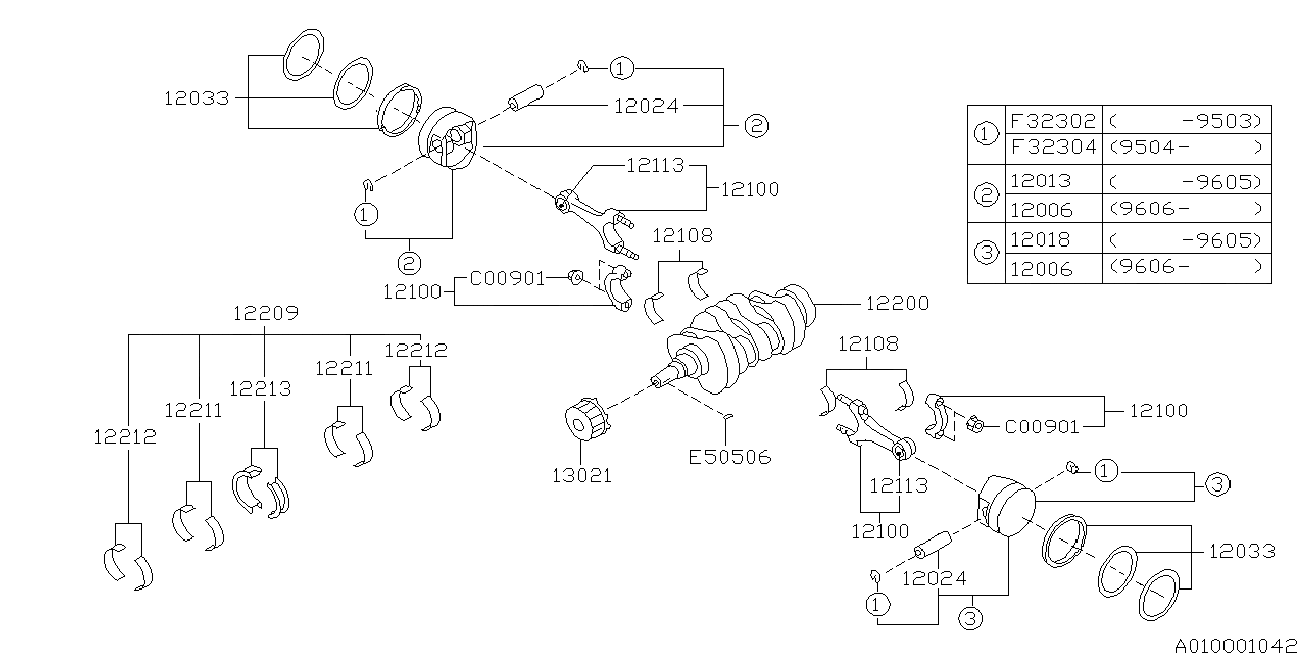

PISTON & CRANKSHAFT
011_01

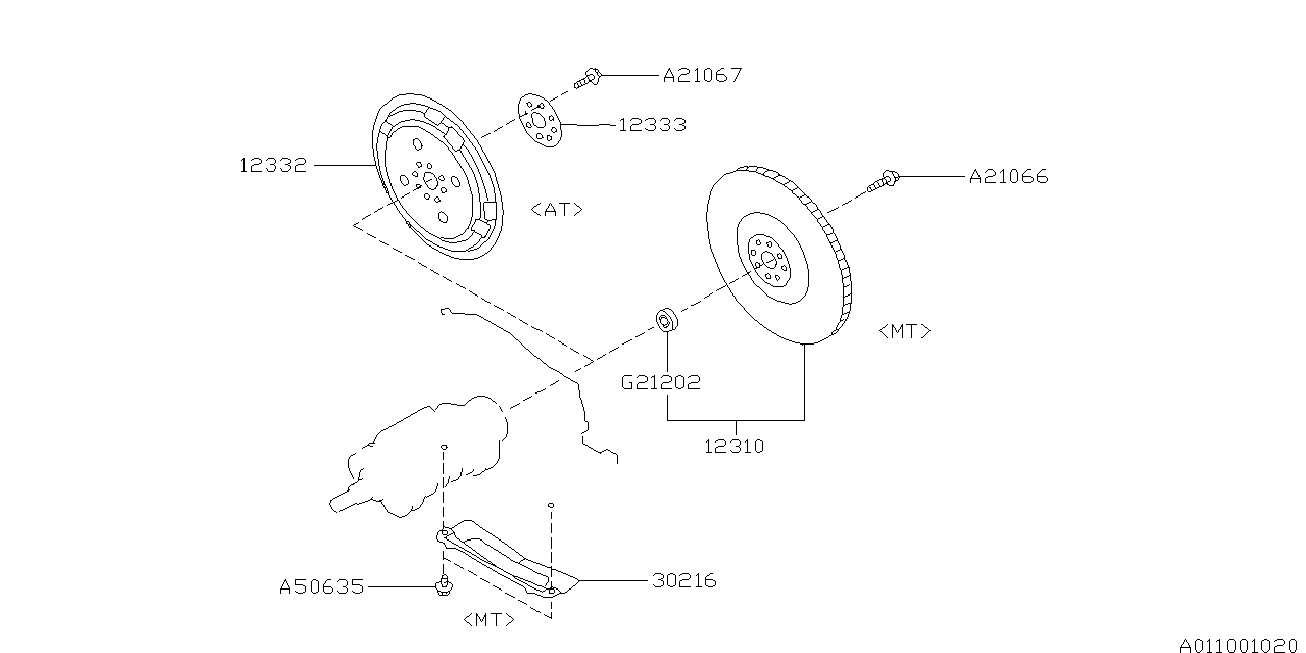

FLYWHEEL
012_02
VALVE MECHANISM
013_01

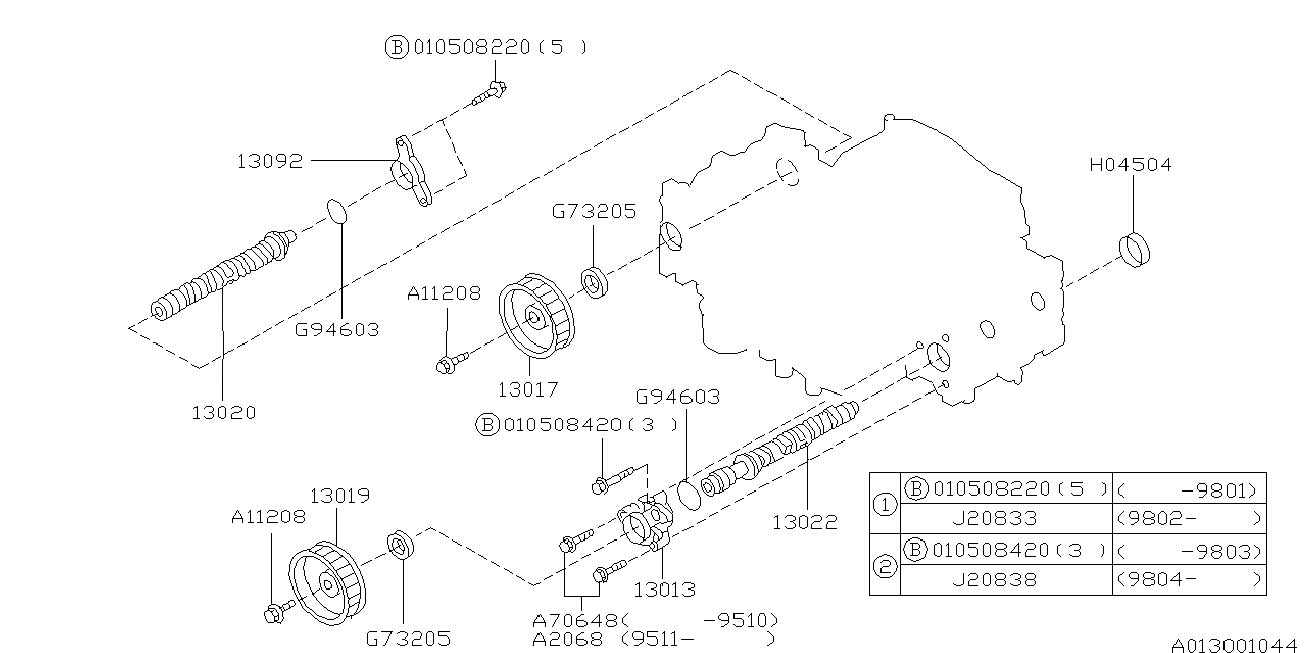

CAMSHAFT & TIMING BELT

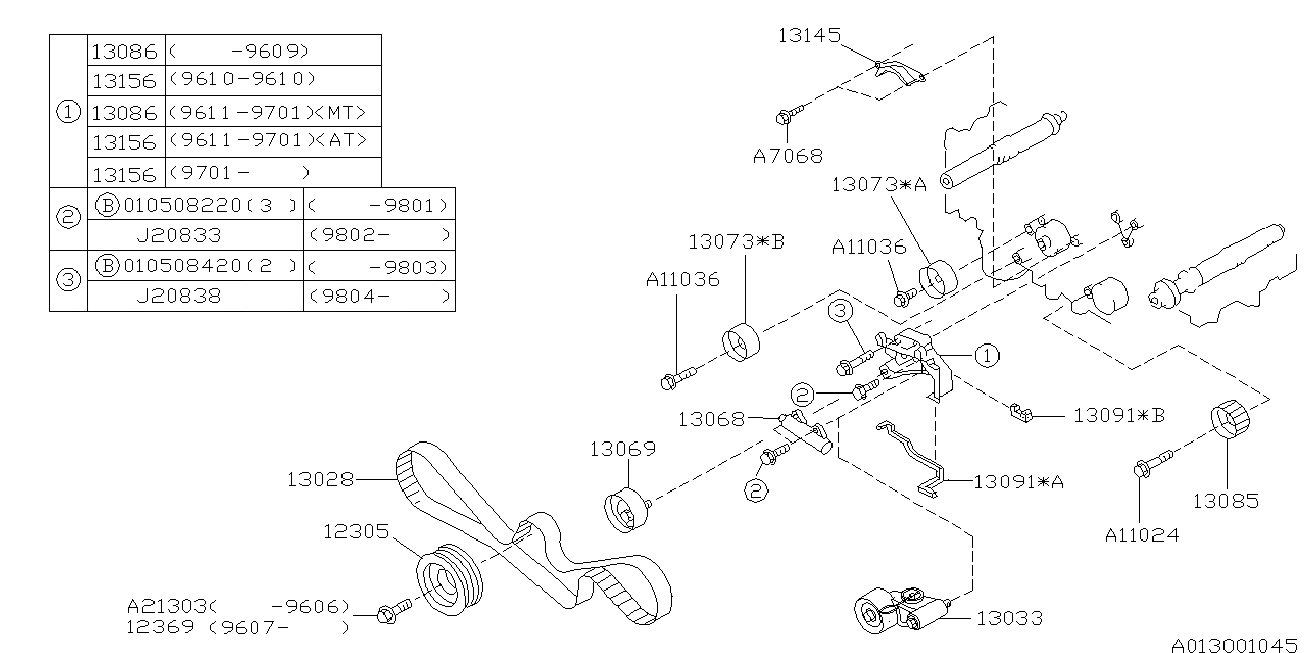

013_02
CAMSHAFT & TIMING BELT

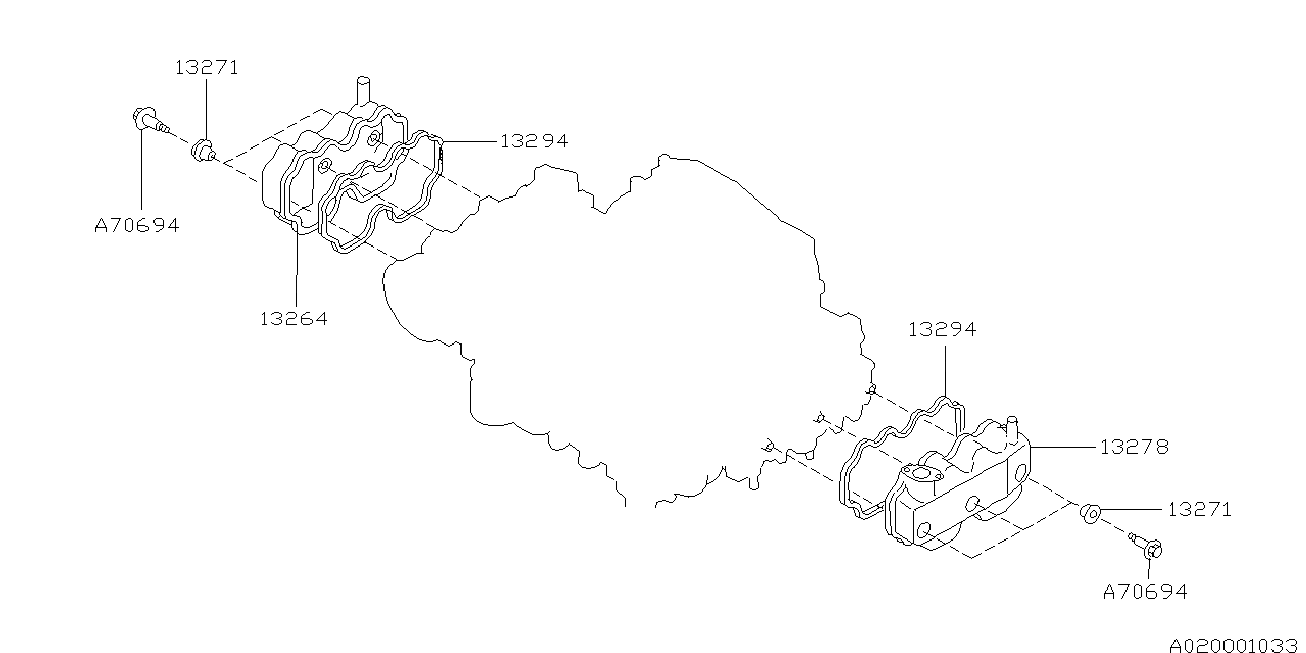

020_01
ROCKER COVER

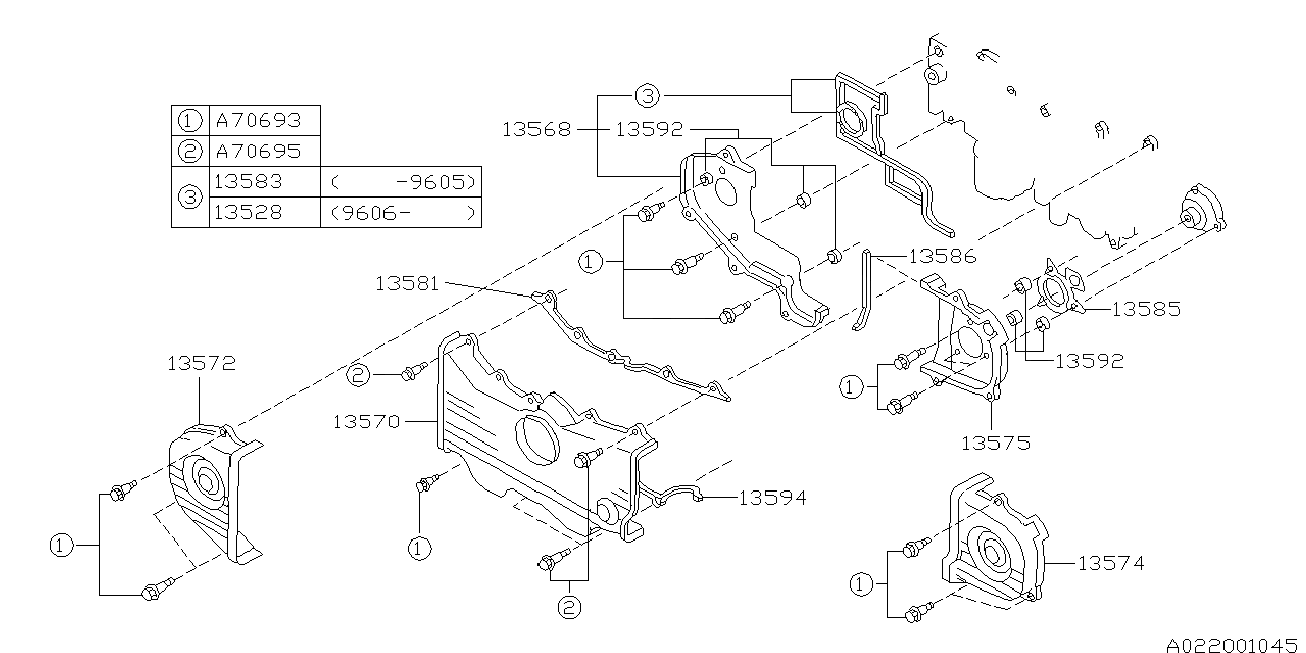

022_01
TIMING BELT COVER
030_01
OIL FILLER DUCT
031_02

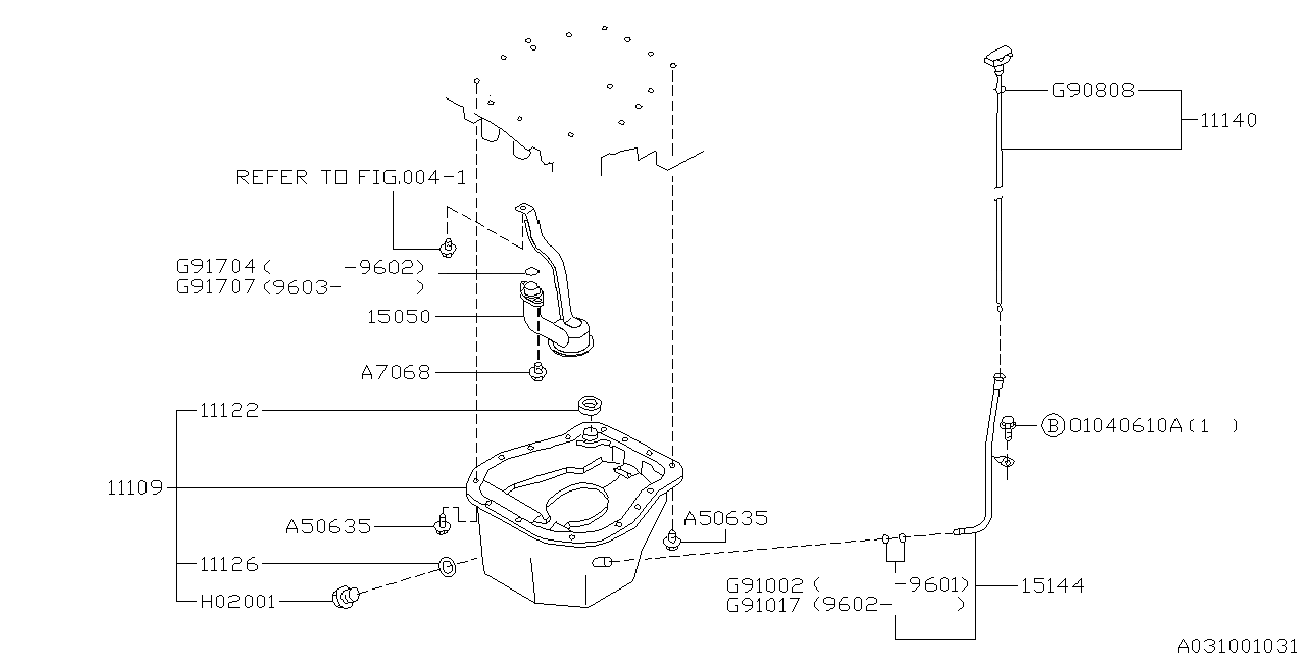

OIL PAN

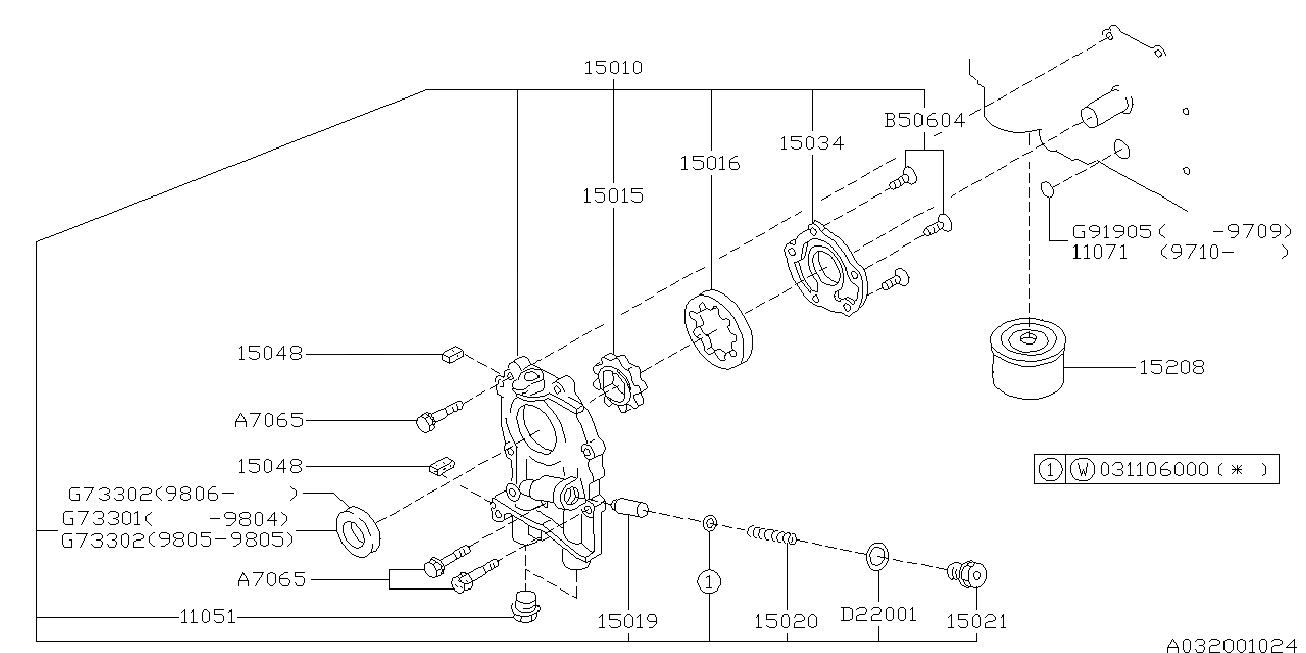

032_01
OIL PUMP & FILTER

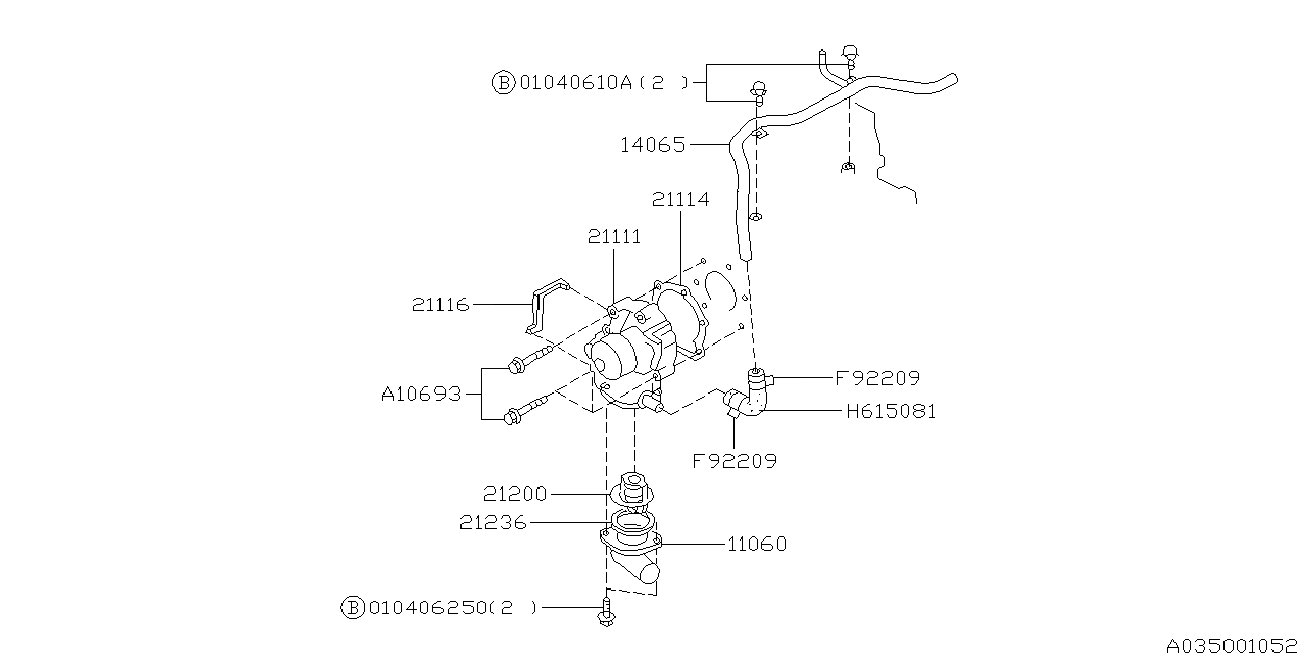

035_01
WATER PUMP
036_01
WATER PIPE (1)
